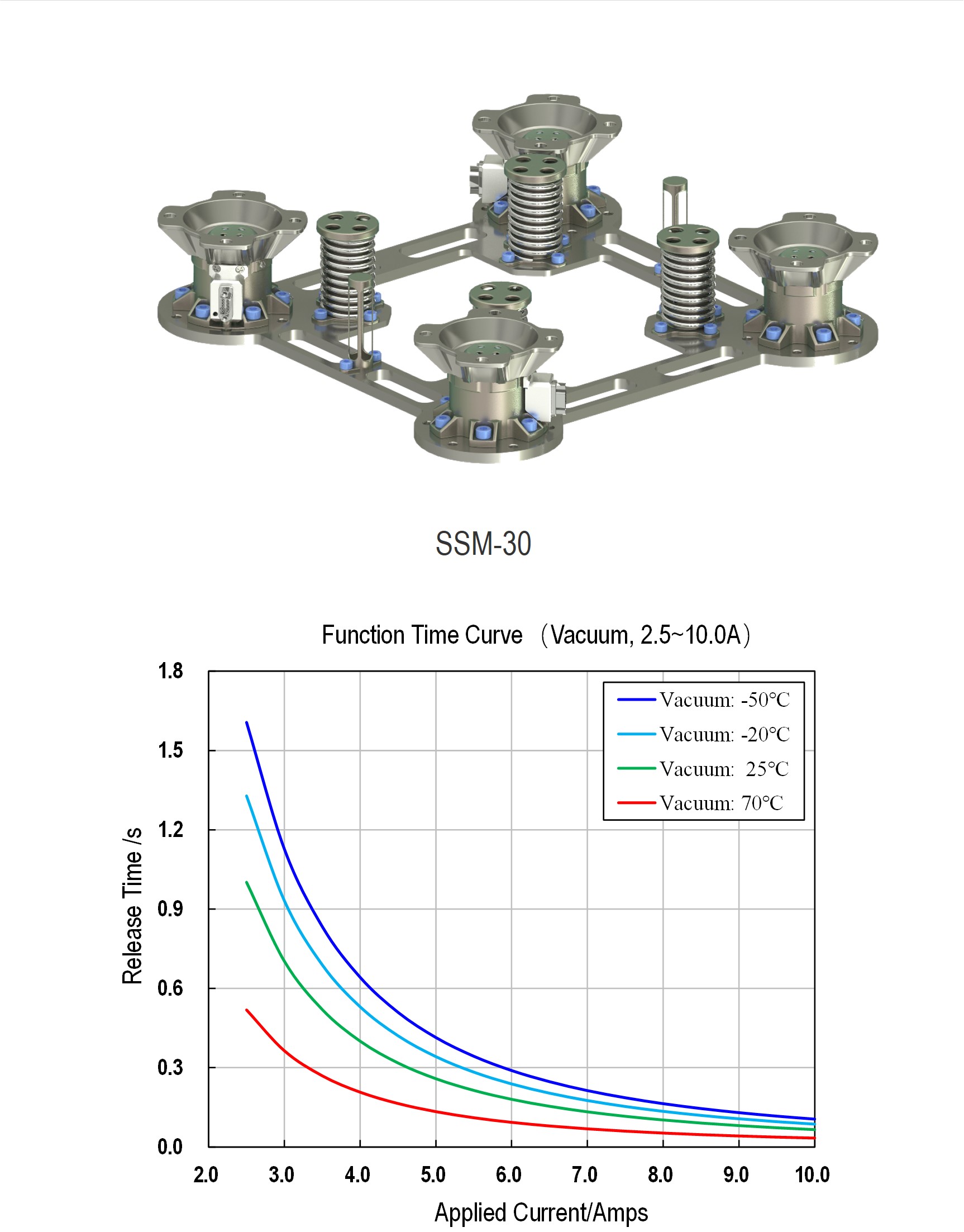

The Link-Easy Aerospace’s Satellite Separation Mechanism (SSM series) is a four-point microsatellite launch adapter, suitable for a wide range of satellite configurations and weights (30~150kg). Four separation nuts (Model: SBN-8KN-S-BM, SBN-15KN-S-BM, and SBN-25KN-BM) are used in the separation mechanism to achieve the lock and release function. The preload of single separation nut is 8~15kN, which ensures high rigidity and reliable lock; Four separation springs are used to push the satellite away synchronous.

Compared with the conventional explosive bolt based four-point separation mechanism or clamp-band separation mechanism, the SSM separation mechanism shows the advantages of low shock, reusability, simple mechanical interface, easy to transportation and operation.
